Product Description

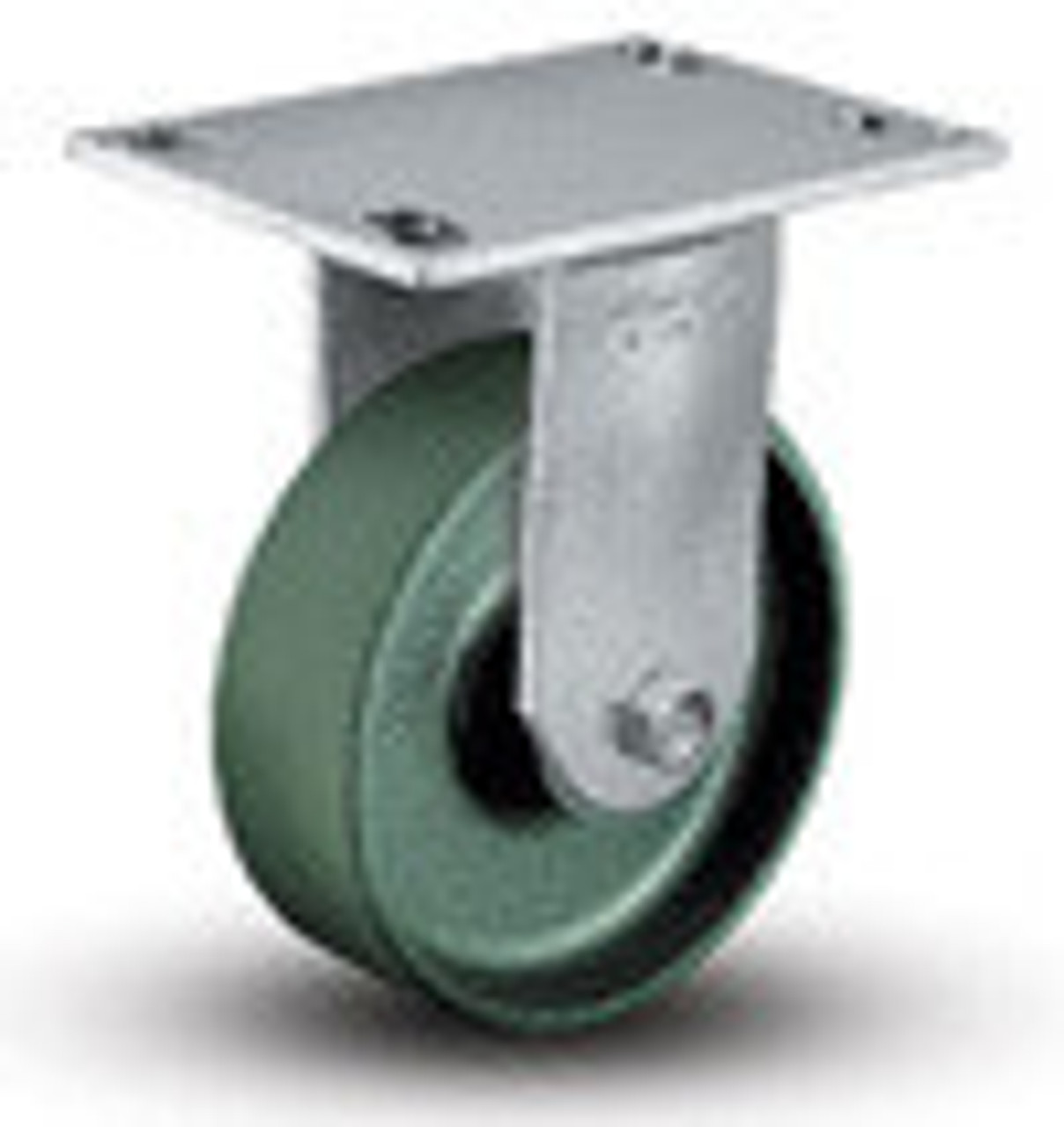

6 Series Enforcer Kingpinless Rigid Caster Rigid Caster (6.04208.539)
With up to four wheel sizes (4", 5", 6", and 8" ) and a load capacity of up to 1,500 lbs, there are many ways to configure the 6 Series caster than shown in our store. For product assistance, pricing options, or engineering support, please call us at 1-800-426-9806 or email us at info@rhbrown.com.
FEATURES
- Attractive zinc-plated finish
- 1/4" fork leg thickness
- Single ball hardened raceways
- 1/2" hollow axle with grease zerk and lock nut
- Plastic seal/retainer washer (roller bearing models)
- 5/16" swivel steel top plate for durability, rigid top plate 1/4" steel
- Grease fittings: wheel bearing and swivel raceway
- "Colson 45" multi-temp grease lubricates in extreme hot and cold temperatures
NSF Listed for Food Service Industry - All models except swivel lock, thread guards, forged steel and cast iron core wheels.Thread Guards - Available on many models, in metal and plastic variationsLoad Height Option - Optional 9-1/2" load height (6-1/4" swivel radius) available for 8" swivel and rigid casters
BRAKE OPTIONS:Tread Lock - This adjustable brake can be installed in the field or ordered assembled onto the caster. The toe activated brake features positive engagement via rubber faced plate. Available on all swivel casters except V-Groove models.Side Lock - This Side Lock brake is designed for Colson 4 and 6 Series Enforcer casters to accommodate a thicker leg. The brake places a positive locking force against the wheel hub to hold heavy loads securely. A larger foot pedal makes the brake easier to operate and provides better foot placement. The brake can be actuated from either end of the pedal for great convenience. Available on all swivel models equipped with roller bearing or one-piece Delrin bearing.
